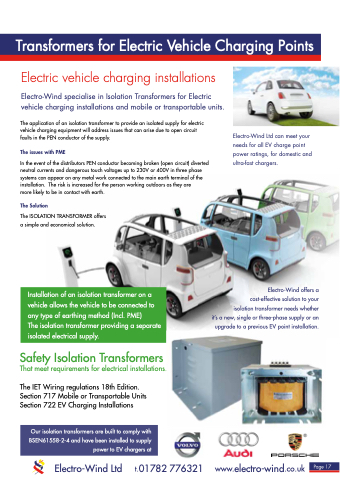

Page 17 - Electro Wind Catalogue 2023

Transformers for Electric Vehicle Charging Points
Installation of an isolation transformer on a vehicle allows the vehicle to be connected to any type of earthing method (Incl. PME)
The isolation transformer providing a separate isolated electrical supply.
Our isolation transformers are built to comply with BSEN61558-2-4 and have been installed to supply power to EV chargers at
Page 17
Electric vehicle charging installations
Electro-Wind specialise in Isolation Transformers for Electric vehicle charging installations and mobile or transportable units.
The application of an isolation transformer to provide an isolated supply for electric vehicle charging equipment will address issues that can arise due to open circuit faults in the PEN conductor of the supply.
The issues with PME
In the event of the distributors PEN conductor becoming broken (open circuit) diverted neutral currents and dangerous touch voltages up to 230V or 400V in three phase systems can appear on any metal work connected to the main earth terminal of the installation. The risk is increased for the person working outdoors as they are
more likely to be in contact with earth.
The Solution
The ISOLATION TRANSFORMER offers a simple and economical solution.
Electro-Wind Ltd can meet your needs for all EV charge point power ratings, for domestic and ultra-fast chargers.
Electro-Wind offers a cost-effective solution to your isolation transformer needs whether it’s a new, single or three-phase supply or an upgrade to a previous EV point installation.
Safety Isolation Transformers That meet requirements for electrical installations.
The IET Wiring regulations 18th Edition. Section 717 Mobile or Transportable Units Section 722 EV Charging Installations
Electro-Wind Ltd t.01782 776321
www.electro-wind.co.uk
